Tonme queue management system KIOSK helps reduce the queue time to offer better service for the
customer.With the help of Kiosk, customers can check what the promotions
they can get.
Also, their private information can be protected well by Kiosk. For
some information like in Medicare, customers probably don’t want to
discuss their requirements with others . They do prefer to get
service from Kiosk.
Main function and Advantages:
1.System can support more than 100 kinds of services.
2.System support more than 10 unit Online unity dispense ticket.
3.System support multi waiting area prompt calling information,
waiting area Voice and display can be independent.
4.Ticket dispenser interface picture can be allodial changed by
customer Personalized design.
5.Each services keys customer can be allodial changed by customer
Personalized design.
6.Each service queue customers can be allodial increase or decrease
as needed.
7.Each service number of waiting person can allodial set display on
the interface,and Any layout.
8.Each service work time and blocking period can allodial set and
change .
9.Operating staff increase or decrease and Log in to account can
allodial change .
10.Voice calling information can easy set and change.
11.LED Display content can easy set and change.
12.Every services category can easy set and change.
13.Queue service customer of each Operating staff can allodial set.
14.About ticket text pattern & business name&time
format&can change the font and size,paper length can customize
according to customers such as personalized settings.
15.The system supports background music, music tracks entirely is
selectable .
16.The system supports the manager on duty at the creation of
monitoring software,Handle a variety of special situations.
17.System has powerful Statistics management functions, can remote
monitoring.
18.The system may configure the client evaluation pad ,and Queuing
information (SMS) prompts.
19.Support Large Size LCD/LED for Main Display
Item | Specification |

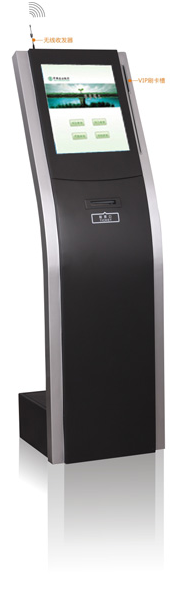

Touch Screen Ticket dispenser Model:TMQ-1702B
| l Gray steel all in one stand sharp l. 17 ,19,22 Inch touch screen and LCD panel l 80 mm Thermal printer, Auto cut l Computer control systems l Windows XP operation l Amplifier and Speaker base inside l Support 1-16 services l Support 1-20 counters l Full wire or Wireless l Multi- language l Power supply: Specified power supply: AC 110 ~ 240 V; 50HZ-60HZ; l Machine size: 140(L)*45(W)*45 (D)cm l Package size: 148(L)*50(W)*52(D)CM l Gross weight:55KG Net weight:48KG |
Terminal Call-pad Model:TMC21
| l 19-21 function key,Calling, optional call, transfer, waiting Persona check, recall,etc l 4 bit LCD display, 4 for ticket number l Full wire or Wireless l USB 2.0 Power supply adapter l Able to Custom counter address ID or wireless channelID l Size: 15(L)*9(w)*2.5(D) cm l Weight:0.125kg |
Counter LED Display Model:TMD04
| l F3.75 Red color 8 letter digits l Black Plastic case l Digits bright light :2 digits counterNo.,4 digits ticketNo. l Scrolling message display l Full wire or wireless l Adapter 5V 3A power supply l Size:35.4(L)*11.6(W)*4(D)cm l Weight:0.5kg |
Main LED Display Model:HYD0404
| l F5.0 to display the general queue number l High brightness, can be seem as far as 80m l Full wire or wireless l Size:53.8(L)*53.8(W)*5(D)cm l Weight: 5KG |
Main LCD Display Model:HYD42
| l 42inch LG or Samsung LED display l Computer base inside l Windows XP operation l LCD queue software base inside l TCP/IP with ticket dispenser l Able to custom display showing area size, color, letters,etc l Include Title, Video, Queuing, Scrolling message. etc l Speakers inside for voice out
|
1. About Configurations
Confirm what configurations you need , what function you need ,
like monitor size , touch screen , thermal printer , card reader ,
cash in and so on .
Using your brand , or Recommended brand .
2. About Design

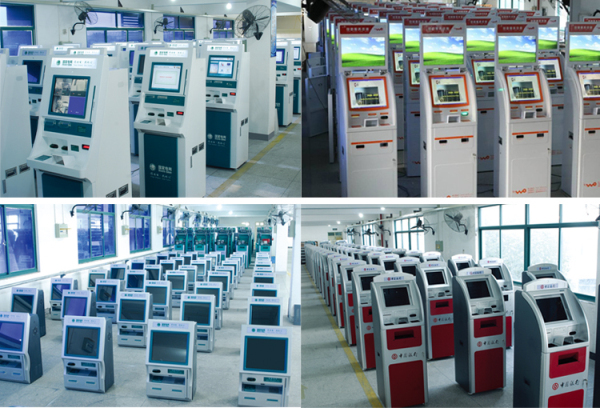

We have been manufacturing kiosk and designed hundreds types kiosk
since 2000 year . We can customize any kiosk as you need .
Using your kiosk image for OEM
Using recommended kiosk image for ODM
Let’s talk about more details , we can supply you a better solution
, Like kiosk project bidding , Inquiry, Product info and so on .
3. About Quality
With ISO Quality Management System and many professional engineers
and for 15 years kiosk experiences , Control each process like 3D
and CAD drawing , Laser cutting , CNC punching , Bending, Welding ,
Painting ,Assembling , Testing , Packaging
Testing and Aging 24 -48 hours to make sure good quality and
product stability before delivery
4. About warranty
12 months warranty for whole machine .
During the warranty , we can repair and replace the defective parts
for free ;After that , we will repair and charge part cost. We
suggest you can prepare some backup parts for urgent need .
More details,please contact me
Shenzhen Tonme Technology Co.,LTD
Tel: +8613923830069 +86-755-28482569
