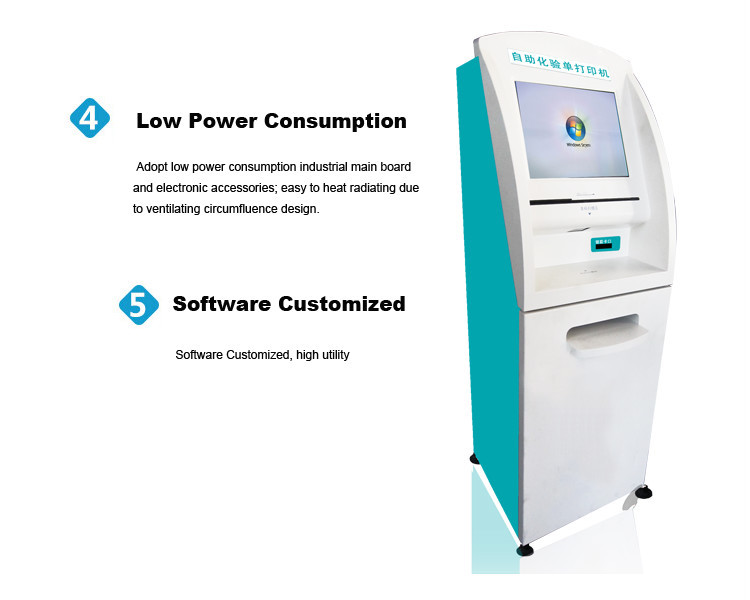

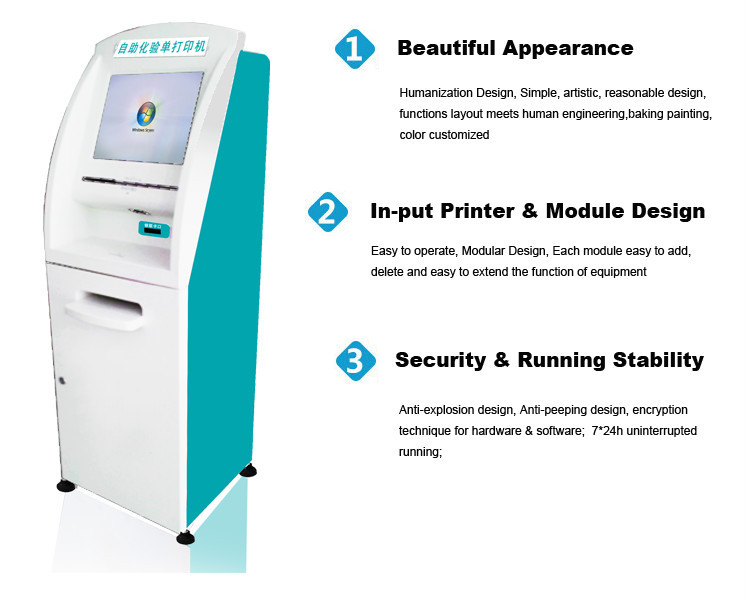

S/N | Hardware Module | Specification |
1 | Cabinet | Cold roll steel plate; Steel Plate Thickness: >1.5mm; Process of
high temperature bake lacquer, rustproof, waterproof,
anti-corrosion, wear-resisting; Size: H1570mm*W512mm*D580mm;
Weight: 95KG |
2 | Host | Industrial Main Board, CPU: Intel AtomD425 CPU, single core CPU
@1.8GHz; Graphics card, sound card and 10000M/100Mbps
self-adjusting Ethernet card, RJ45, RS485 port. 6* serial ports, 1
*parallel port, 8 USB2.0 ports; RAM: 2G/DDR3/SO-DIMM;HDD 500G, ATX
Power Rated Power: 200W |
3 | Monitor | Size: 17"; TFT multi-color LCD; Resolution Ratio:1280*1024; Refresh
Rate: 60Hz; Brightness:250cd/m2; Contrast Ratio: 450:1; Service
Life: >50000 hours |
4 | Touch Screen | Size: 17"; SAW touch screen; Resolution Ratio: 4096*4096; Service
Life : >70,000,000 times; Position Accuracy: <2mm; Response
time:<16ms |
5 | Audio Module | Multimedia Audio Box. Left-right bi-channel amplified output;
Frequency Response: 70HZ-10KHZ; SNR: 80dB; Distortion Factor: <
10%; Power:3W*2 |
6 | Monitoring Module (optional) | HD multi-color micro-digital video. Imaging component: 1/4 PC1030N
CMOS; Definition: 420TV lines; Effective Pixels: 648*488;
Synchronous audio output and 2D digital Denoise processing; 3
cameras: 1 for monitoring banknotes box, 1 for monitoring queuing,
1 for monitoring bill entrance(optional quantity) |
7 | PC Key Board | 67 Key metal board with touch pad, waterproof, dustproof and vandal
proof. Surface Treatment: etching ink printing and wire drawing
process; Passed the certification of CE, RoHS, FCC etc. |
8 | Thermal Receipt Printer | Printing Width: 80mm (=3.1496 inch); 48 English
characters/line;Speed:150mm/s; Auto-alarm when paper is runs out or
jam happened; Auto cut paper; IBM character set II |
9 | Dot Matrix Invoice Printer(optional) | Dot Matrix Stylus Printer. Printing Width: 76mm(3 inch); Speed:3.5
line/second; Auto alarm when paper is runs out or jam happened;
Auto cuts, feeds and vomits paper; IBM character set II |
10 | ID Card Reader(optional) | Certification of ISO 14443 Type B; Transport Mode: wireless; USB
port; Read Distance: 0-5cm; Read time: <1s; Auto power supply
protection design; MTBF(Mean Time Between Failures ): >5000H; USB/RS232 port (optional) |
11 | 2D Code Scanner | Support 1D & 2D barcode and PDF identification; Resolution: 752 *
480; Barcode precision:≥ 3 mil; Depth of focus:40 mm - 300 mm; contrast:≥30%; maximum power consumption: 2W; operation voltage DC 3.3 V,
current 300 mA |
12 | UPS Power | Uninterrupted Power Supply; Output power: 500W; Reserve power time:
>15mins; Support protection of overvoltage, over current and
short-circuit; Smart switch; Auto battery charging. |
13 | Input Power | Power: AC220V±10%, 50Hz±5%; |
14 | Operating Environment | Temperature: -10℃~+50℃; Relative Humidity: 35%~85% |
15 | Operating System | Support Windows, Linux |
