Applications
Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, star-rated hotels, restaurants, travel
agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies,
pawnshops;
Non-profit Organizations:Telecommunications, post offices, hospital, schools;
Public Places:subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
property brokers;
Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course.

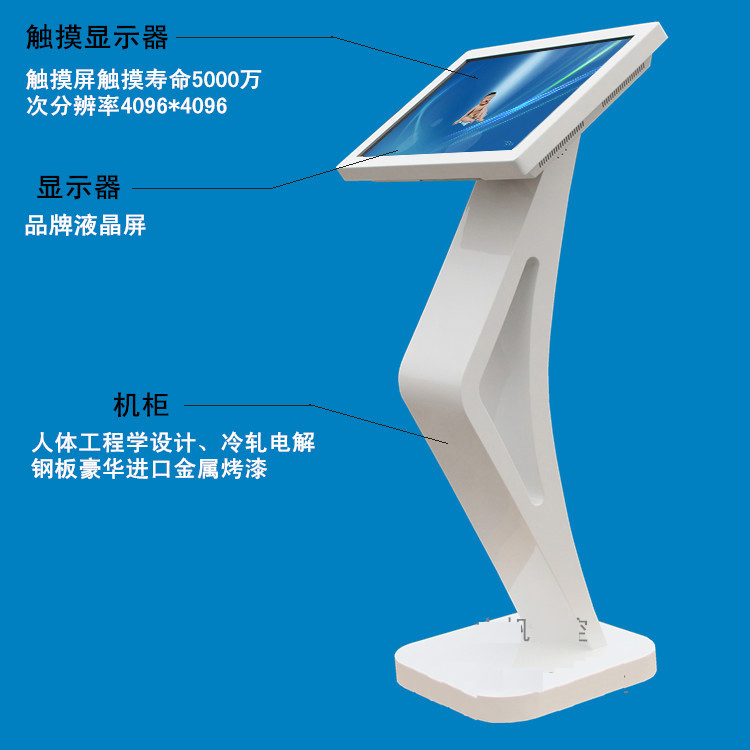

Touch screen kiosk |
Model No | TM03P22LD |
LCD Display | TFT LCD 22” kiosk enclosure |
Resolution | 1920*1080 |
Contrast Ratio | 1000:1 |
Color Resolution | 16.2M |
Brightness | 350CD/m2 |
Touch Technology | Anti-Dust infrared double Touch Screen Kit |
Light Transmission | 90%~92% |
Response Time | Less than 16ms |
Touch Activation Force | Less than 100g(adjust allowed) |
Durability | Scratch-free; More than 50,000,000 touches in one location without
failure. |
Surface Hardness | Mohs’ hardness rating of 7 |
Controller Interface | USB and RS232 |
PC Specification | Mini PC |
CPU | INTEL G630 Duo core 2.7GHZ/i3/i5 |
RAM | DDR3,2GB/4GB/8GB |
HDD | 500GB 2.5" |
Graphics | Inter NM10Express |
Chipset | INTEL 5400 |
Ports | 5 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI, |
Power Consumption | 30 W |
Operating System | Windows 7 |
Optional Components |
|
Wireless | 802.11 b/g/n Wi-Fi and antenna |
Thermo printer | 80MM priner SID3250K |
IC card sensor | 1443A/1443B |
Physical Specification |
|
Kiosk shell material | 1.5mm cold rolled steel+Acrylic cover |
Color | Silver /Black/White/personalized colors. |
Fan | 2 x 12V fans |
Audio | Speakers | 2 x 10W Speakers, 1 x 30W Amplifier |
Ports | Slots | Power input | Power switch | PC switch | USB | LAN |
Cables | Standard power cable |
Power Supply | International 110–240 AC power |
Operating Temp | Humidity | Temperature:+5°C ~ +50°C | Humidity:0% ~ 80% |
Packing Method | Export wooden box+export carton box+4cm foamy. |
Customize Options |
|
Multi-options | Shell design | Personalized colors, finish, branding & advertising |
Screen size | From 18.5" to 65" |
PC components(Optional) | CPU :IntelD525 Due core 1.8GHZ/G620/I3/I5/I7, Hard disk:500GD HDD,1TB HDD or SSD. RAM: DDR3 2GB/4GB/8GB/16GB,etc. Graphics: optional |
Other Kiosk Components |
|
Wireless Network | 3G/GPRS modem, Bluetooth, GPS receiver |
Printers | 58mm, 80mm, ticket printers |
Input | Keyboards, Touch pads, Trackballs |
Card Devices | Magnetic / IC / RFID devices, Multi-card reader |
Payment Devices | Debit / Credit Card Payment devices, Bill & Coin devices |
Scanners | Barcode & document scanners |
Authentication | Biometric devices & signature pads |
Power | UPS |
Other | DVD RW, Intrusion Alarm, Proximity Sensor |
Attention Points |
|
Comments | Specifications are subject to change |
Please contact me for further information |
