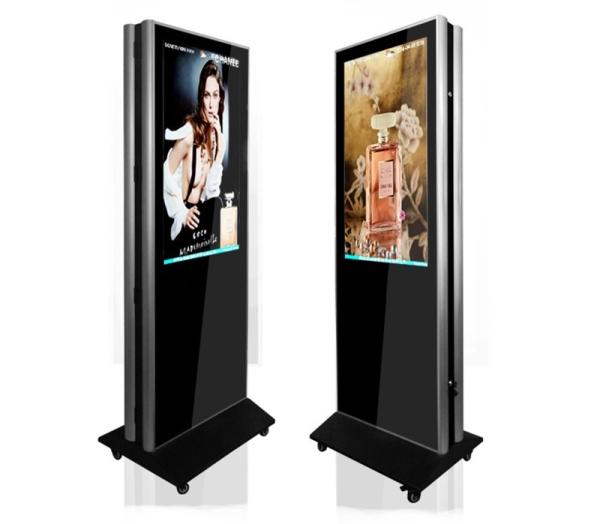

1. Product Name: 55"Double sides LCD advertising display

2. Product Model: TM03P55LD02
42"46"55"65" option

3. Technical Specifications

1). Parameter for LCD Panel:

Panel Size: 55 inch Real Color LCD Screen with LED Backlight Aspect Ratio: 16:9
Quantily:55" * 2

Active Area: 1209.6mm (H) x 680.4mm (V) Max. Resolution: 1920 x 1080

Number of Color: 16.7M Brightness: 600cd/m2 Contrast Ratio: 1000:1

Responsive Time: 8ms Panel Life: above 50000 hours Dot Pitch: 0.227mm(H) x 0.227mm(W)

2). Compatible File Formats:

MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1),MP3,JPG,WMV,Flash,H2.64 etc.

3). Playing Media:

Flash Memory Card : CF card, SD card and USB (32M-16GB); Build-in Flash Memory (optional)

USB: High Speed USB 2.0 (Host)

4). Others:

Power Supply: AC 110V to 240V, 50/60HZ

Working Temperature: -15'C-65'C; Working Humidity: 20%-80%

Storage Temperature: -20'C-60'C; Storage Humidity: 10%-95%

5). Packing Information:

Packing list: one unit 55" LCD digital signage, two Pieces of keys, English user Manual, Remote Controller

Packing Size: 1870mm*250mm*830mm

Net Weight: 92kg, Gross Weight: about 110kg Volume Weight: 64.67kg

4. Main Function:

1). Time Function: the player turns on/off at the same time everyday according to user setting.

2). No DVD style Mechanical movement, hence more durable and suitable for long-hour advertising playing.

3). Support 5 groups of auto power-on/off timer, and can set 5 groups of time one day and 7 days in one week.

4). Build-in Flash memory card decoding function, which support CF card, SD card and U-sticker.

5). Flash memory card can be supported from 65M to 16GB on the LCD player

6). Support software upgrade function by U-sticker via USB port.

7). Build-in Clock and calendar function in the system of player.

8). Playing advertising file automatically and circularly after insert CF card/SD/U-sticker etc.

9). Support playing list function: user can set different folders, copy all target files to those different folders via software, system would default to play your target file one by one.

10). Support IR Remote function, user can use IR to operate the whole LCD.

11). Support Sub-screen or small window playing mode.

12). Multi-language function: Chinese, English, France, Spanish, Korea etc.

13). It is available with Horizontal OSD and Vertical OSD.

14). Support port, AV port, S-video.

15). It can build-in PC, DVD player.

5. Product Features:

1). Adopts high transparent tempered glass (6mm thickness) as protection layer to prevent LCD panel being broken and distorted.

2). Full Metal outer shell and 6mm tempered glass as protect layer against LCD Panel.

3). Color for metal outer frame is available with golden color, Shinning-silver color, cream-white color; also we accept customizing color according to color code.

4). Adopts Samsung or LG brand as LCD Panel, Full New A grade standard.

5). Locking system for anti-thieves, prevented the player and storage devices from being stolen.

6). Password can be set to protect the contents and lock the keyboard of the remote controller.

7). New function can be upgraded by blank U-sticker via USB port.

8). Build-in High Quality speaker Stereo 2pcs x 5W; support audio amplifier system 2pcs x 15W.

9). Fixing Method: Support back fixing method or Roof fixing method.

6. Applicable field:

Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops

Non-profit Organizations: Telecommunications, post offices, hospital, schools

Public Places: subway, airports, stations, bookstores, parks, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, exhibition halls, toll stations, , gas stations.

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
