Outdoor wall mounted digital advertising display
Introduction:
Outdoor wall mounted digital advertising display is a modern way to
show dynamic advertisement, message or any other digital content on
screen installed in shops, restaurants, airports and other places.
The aim of outdoor wall mounted digital advertising display is to
create a platform where audio and visual content can be distributed
via internet and display on screens to attract customers'
attention.
Outdoor wall mounted digital advertising display is a fast growing
form of marketing and many organization that use static paper or
board advertising are changing to this new medium.
Features:
1. All-Weather outdoor wall mounted digital advertising display;
2.IP65 enclosures, waterproof, dustproof, anti-humidity, anti-corrosion and
anti-vandal;
3.High-Brightness LCD Panel, brightness up to3500nits, readable under direct sunlight;
4. AR Bonding TM-protection 6mmglass, anti-glare, high transmittance, low reflectivity and
anti-ultraviolet;
5.Intelligentair conditioner,integrated cooling and heating system;
6. Automaticallyadjust monitor brightnessaccording to ambient brightness, maximum energy saving;
7. LCD panel will not turn black under direct sunlight;
8. Modular design, easy to maintain;
9.Operating Temperature-40°C to 55°C;
10. Intelligent surveillance;
11. Custimized design for client;
12. 19inch to 82inch outdoor LCD advertising display is available;
13.Optionally integratingTouch Function, WIFI, Networks, Information Issue System, Remote
Monitoring System;
14. CE, EMC, ROHS.
Standard Configuration
Display | Panel Size | 46" |
Aspect Ratio | 9:16 portrait |
Resolution | 1920*1080 (HD) |
Brightness | 1500 cd/m² |
Contrast Ratio | 3000:1 |
Viewing Angle | 178° horizontal / 178° vertical |
Display Area | 1039mm*584mm |
Video Interface | VGA and |
Audio Interface | AUDIO IN |
Brightness Control | Automatically light sensor system |
Embedded PC | CPU | Intel ATOM D525 Dual Core 1.8G |
Memory | 2 GB DDR2 800 MHz |
Display Card | NVIDIA GT218 512M Independent Video Memory |
Hard Disk | 250 GB |
Interface | 12V DC-in, Mic/Audio In, USB 2.0 Port(4), Port, VGA Conector 10/100
/1000 Adaptive Ethernet |
Operation | Operating Temperature | -40°C to +55°C (Measured at sun exposed area) |
Operating Humidity | 5%to100% |
Protection Grade | IP65 |
Power | AC 108-115V,50/60Hz |
AC 208-240 V, 50/60 Hz |
Power Consumption | 1.0 kW (Mainly for AC starting) |
All in One Unit | Portrait Dimension (WxHxD) | 1980 mm x 740 mm x 255 mm (Exclude back haging) |
Packing Size | 2160mm*960mm*520 mm |
Weight | 176 kg |
Glass | 6mm High perspective, anti-reflective, tempered, safe glass |
Air Conditioner | Integrated heating and cooling system |
Optional Configuration
1. Touch Function | Infrared Touch or Capacitive Touch |
2. Wireless Networks/WIFI | External Wireless Network Interface connecting to PC |
3. Remote Info Issue & Management System | Integrated Networks remotely issue contents to display terminal and
manage the contents of the display terminal as well |
4. Remote Environment Monitoring System | Integrated Networks available for remotely monitoring the inner
operating status in the machine |
5. Anti Graffiti Protection | Special coating allows easy removal of graffiti without damaging
surface |

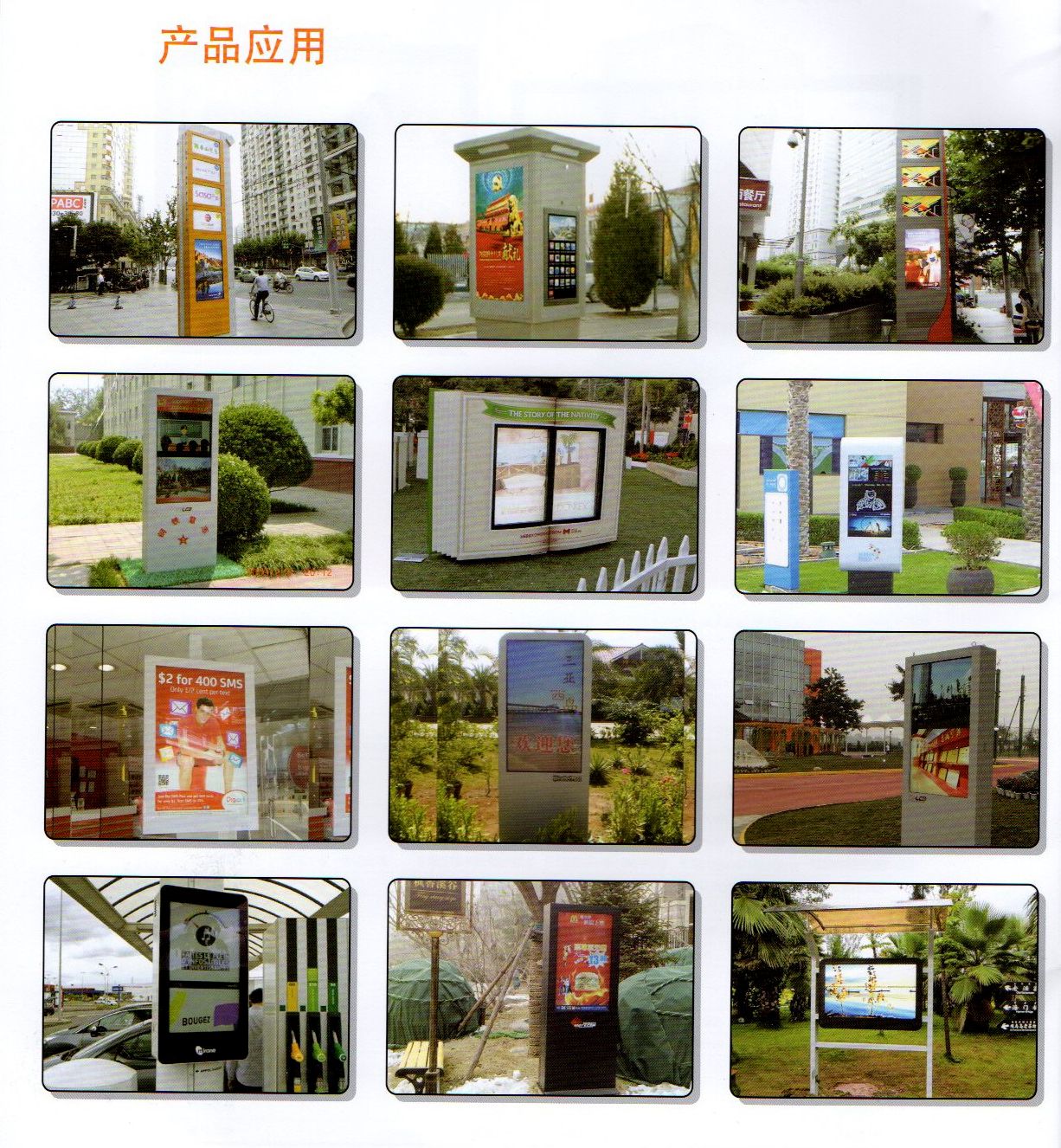

Application:
1.Commercial Organizations: Supermarket, Shopping mall, Exclusive
agency, Chain shops, Department Stores, Hotel, Restaurants, Travel
agency, Pharmacy, Convenient stores, Group Headquarter, etc;
2.Financial Organizations: Banks, Negotiable Securities, Funds,
Insurance company, Pawnshops, etc;
3.Non-profit Organizations: Telecommunication, Post offices,
Hospital, School, etc;
4.Public Place: Subway; Airport, Railway station, Bus station, Gas
station, Toll stations, Bookstore, Parks, Exhibition Hall, Stadium,
Museums, Convention centers, Ticket offices, Job center, Lottery
center, etc;
5.Real Estate Property: Apartments, Villas, Office, Commercial
Buildings, Model rooms Property Brokers, etc;
6.Entertainment: Theatre, Fitness Hall, Country Club, Massage Shop,
Bars, Cafes, Internet Bars, Beauty shop, Golf course center, etc.
